Description
The Micro Kit is a Macroscopic Solutions accessory that uses an assortment of high quality long working distance objectives at 10x, 20x, 50x and 100x magnification, which yields imagery at 100x, 200x, 500x and 100ox in phenomenal resolution. These objectives are used in conjunction with the Canon EF 70-200 mm telephoto lens and the Macroscopic Solutions shades and diffusers.

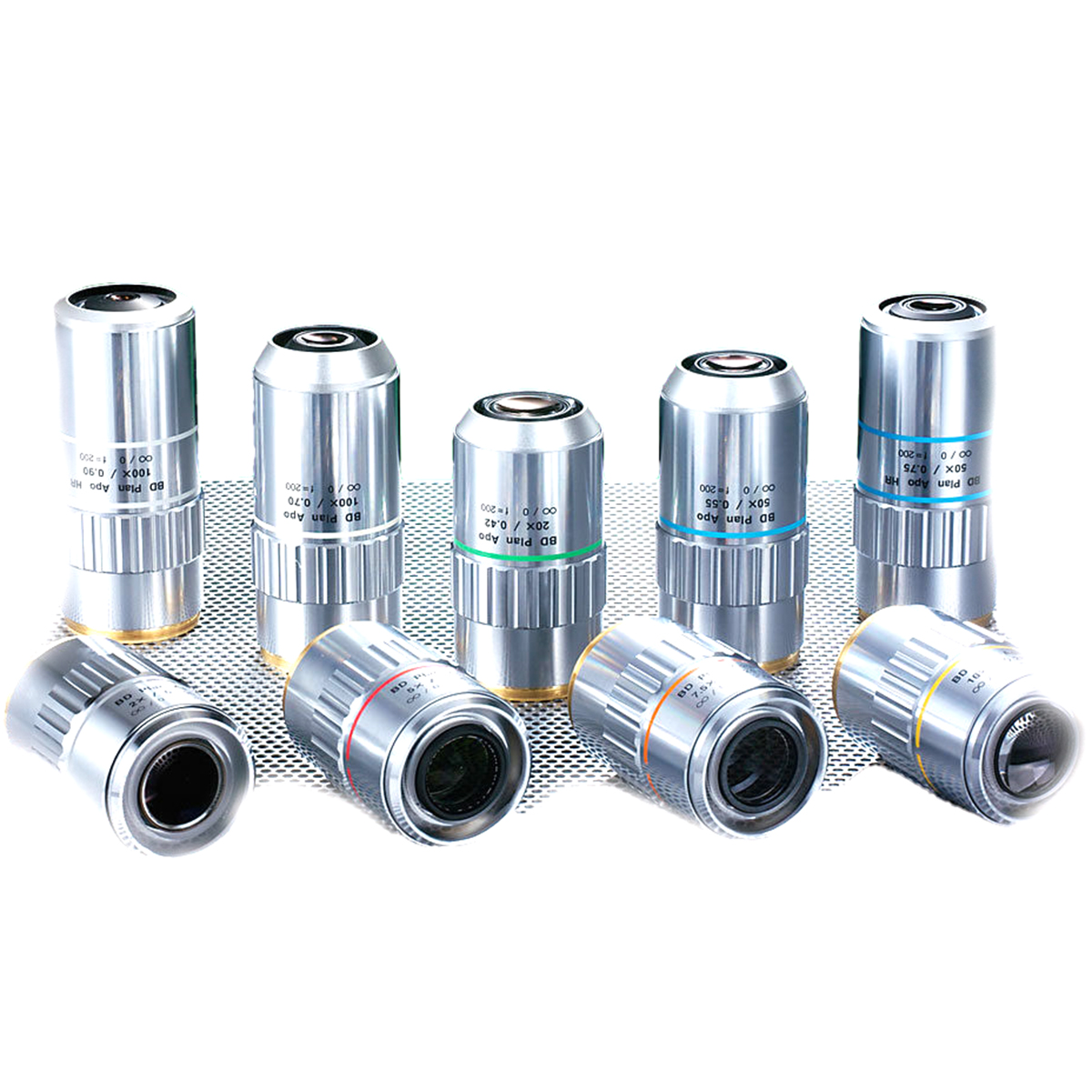

Mitutoyo’s objectives are world-renowned for setting the standard of excellence for long working distance optics. They have achieved the best combination of working distance and optical performance by using a new approach and avoiding outdated conventions used by others. In order to maintain as high a numeric aperture and contrast as possible, the lenses are all Plan Achromats. An apochromatic objective lens is chromatic aberration corrected for red, blue and yellow. Optimized for bright-field illumination (incident illumination parallel to optical axis), these lenses are ideal for in-line llumination applications. For an infinity correction system, a 200mm tube lens is required and our solution is the high performing Canon EF 70-200 mm telephoto lens. Enjoy!
Your Micro Kit purchase includes:
- M Plan Apo 7.5x
- M Plan Apo 10x
- M Plan Apo 20x
- M Plan Apo 50x
- M Plan Apo 100x
- Canon EF 70-200 mm telephoto lens
- Adapter Plates
- Lens Foot Plates
- Micro Diffusers
- Polarizing and UV Filters
- Set-up and Configuration support by Macroscopic Solutions
- Insured Shipping
| Apo 7.5x | Apo 10x | Apo 20x | Apo 50x | Apo 100x | |
| Numerical Aperture | 0.21 | 0.28 | 0.42 | 0.55 | 0.70 |
| Working Distance (mm) | 35.0 | 33.5 | 20.0 | 13.0 | 6.0 |
| Focal Length(mm) | 26.67 | 20.0 | 10.0 | 4.0 | 2.0 |
| Resolving Power (μm) | 1.3 | 1.0 | 0.7 | 0.5 | 0.4 |
| Depth of Focus(μm) | 6.2 | 3.5 | 1.6 | 0.9 | 0.6 |
| Weight(g) | 240 | 240 | 270 | 290 | 320 |
100 micron markings at 10x, 20x, 50x & 100x
